电子保险丝 / 单通道 / 5V
PG79289
PG79289
PG79289
Active
• Server and AUX supplies
• PCI and PCIe cards
• Adapter powered devices
• HDD and SSD drivers

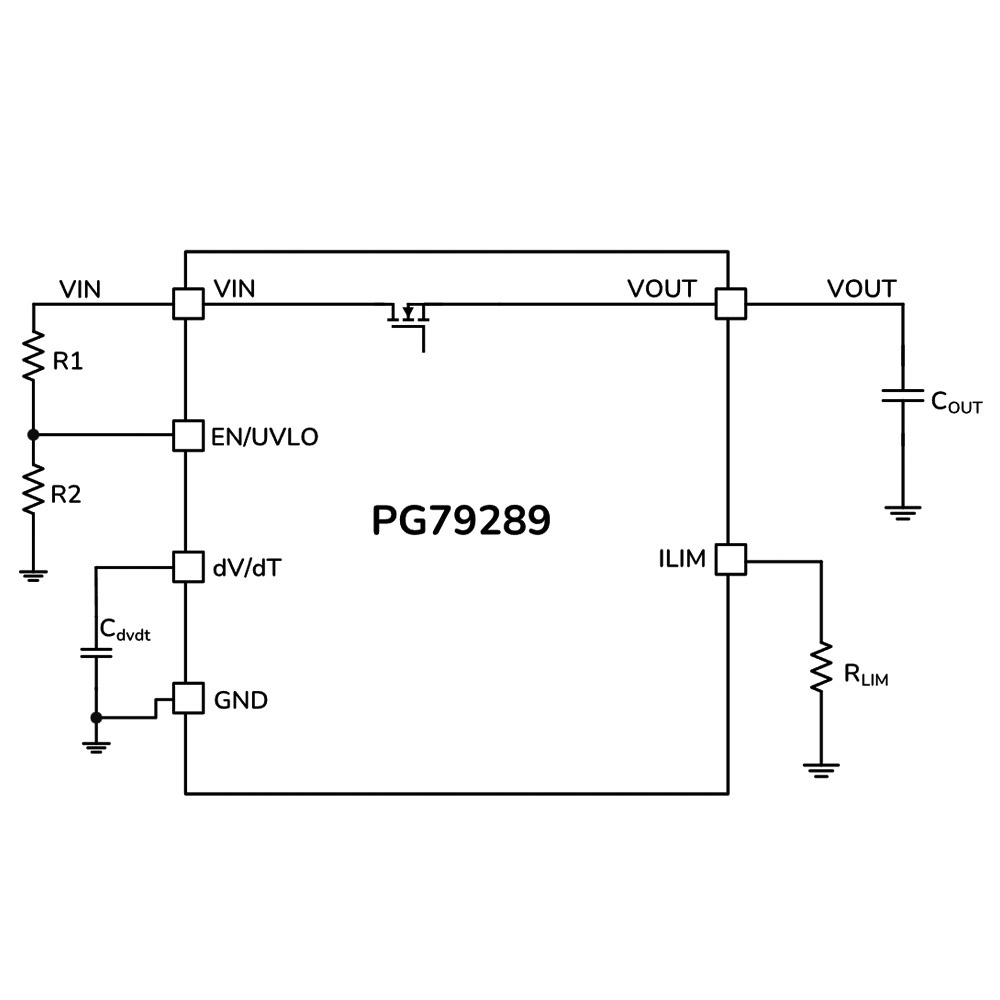

The PG79289 and PG79389 are active circuit protection devices with an integrated MOSFET used to limit current and voltage to safe levels during fault conditions.
The current limit level can be set with a resistor between ILIM and ground, and the typical current limit accuracy is ±15%.
The device has over voltage protection feature which limits the output voltage to a fixed level when over voltage fault occurs.
To limit the inrush current during device turn-on, the rising slew rate of output voltage can be set by a capacitor between dV/dT and ground.
The device also offers EN on/off control and input UVLO features.

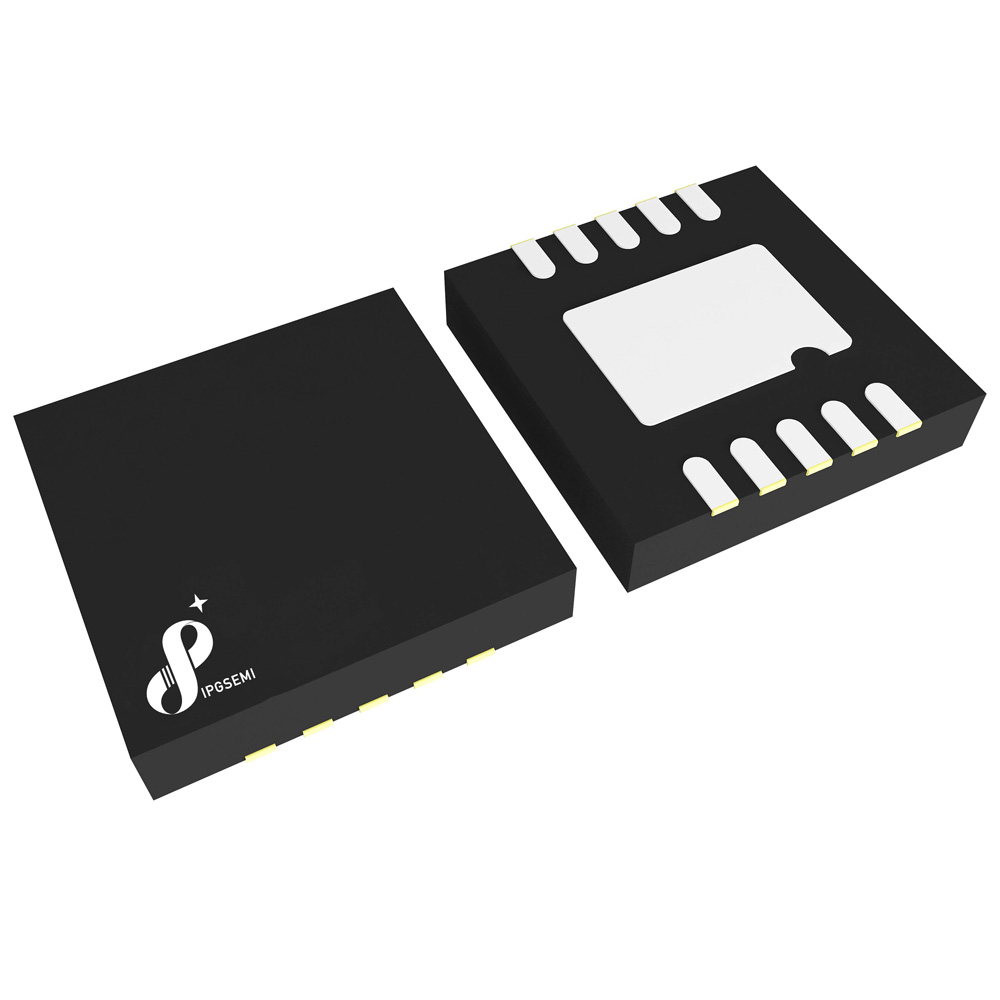

The device is available in VSON 10 pins, 3x3 mm package.
| P/N | Vin (V) Voltage Range(V) | Continuous Current (A) | UVLO (V) | OVP (V) | Ron typ (mΩ) | Iq typ (mA) | Fault indication | PMBUS | Soft-Start | Latch/Retry | Current Limit (A) | Package(s) | status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG79289AR | 4.5 to 5.5 | 5 | 4.3 | 6.1 | 25 | 0.26 | N | N | Y | Latch | 2 to 5 | VSON-10 (3x3 mm) | Active |
| PG79289BR | 4.5 to 5.5 | 5 | 4.3 | 6.1 | 25 | 0.26 | N | N | Y | Retry | 2 to 5 | VSON-10 (3x3 mm) | Active |
| 对比参数 |
PG79289
|
|
|---|---|---|
| Vin (V) Voltage Range(V) | 4.5 to 5.5 | |
| Continuous Current (A) | 5 | |
| UVLO (V) | 4.3 | |
| OVP (V) | 6.1 | |
| Ron typ (mΩ) | 25 | |
| Iq typ (mA) | 0.26 | |
| Fault indication | N | |
| PMBUS | N | |
| Soft-Start | Y | |
| Latch/Retry | Latch / Retry | |
| Current Limit (A) | 2 to 5 | |
| Package |
VSON-10 (3x3 mm) |
|
| status | Active |
