电子保险丝 / 单通道 / 3.3V
PG79288
PG79288
PG79288
Active
• PG79288 - 3.3V eFuse
• PG79287 - 5V eFuse
• PG79390 – 2.97V to 18V input
• PG79388 - 12V eFuse
• Integrated 34mΩ Pass MOSFET
• Adjustable 0.5A to 4A current limit
• Adjustable output slew rate
• Enable with adjustable input UVLO threshold
• Fixed over-voltage camp: 3.8V for PG79288, 5.7V for PG79287 and 13.7V for PG79388
• Built-on over temperature protection
• Small 2x2mm WSON package
• RoHS compliant and Green
• Hot-swap, hot-plug
• PCI and PCIe cards
• Adapter powered devices
• HDD and SSD drivers
The PG79288/287/390/388 devices are active circuit protection devices with an integrated MOSFET used to limit current and voltage to safe levels during fault conditions.
The current limit level can be set with a resistor between ILM and ground, and the typical current limit accuracy is ±7.5%.
The device has over voltage protection feature which limits the output voltage to a fixed level when over voltage fault occurs.
To limit the inrush current during device turn-on, the rising slew rate of output voltage can be set by a capacitor between dVdt and ground.
The device also offers EN on/off control and input UVLO features.

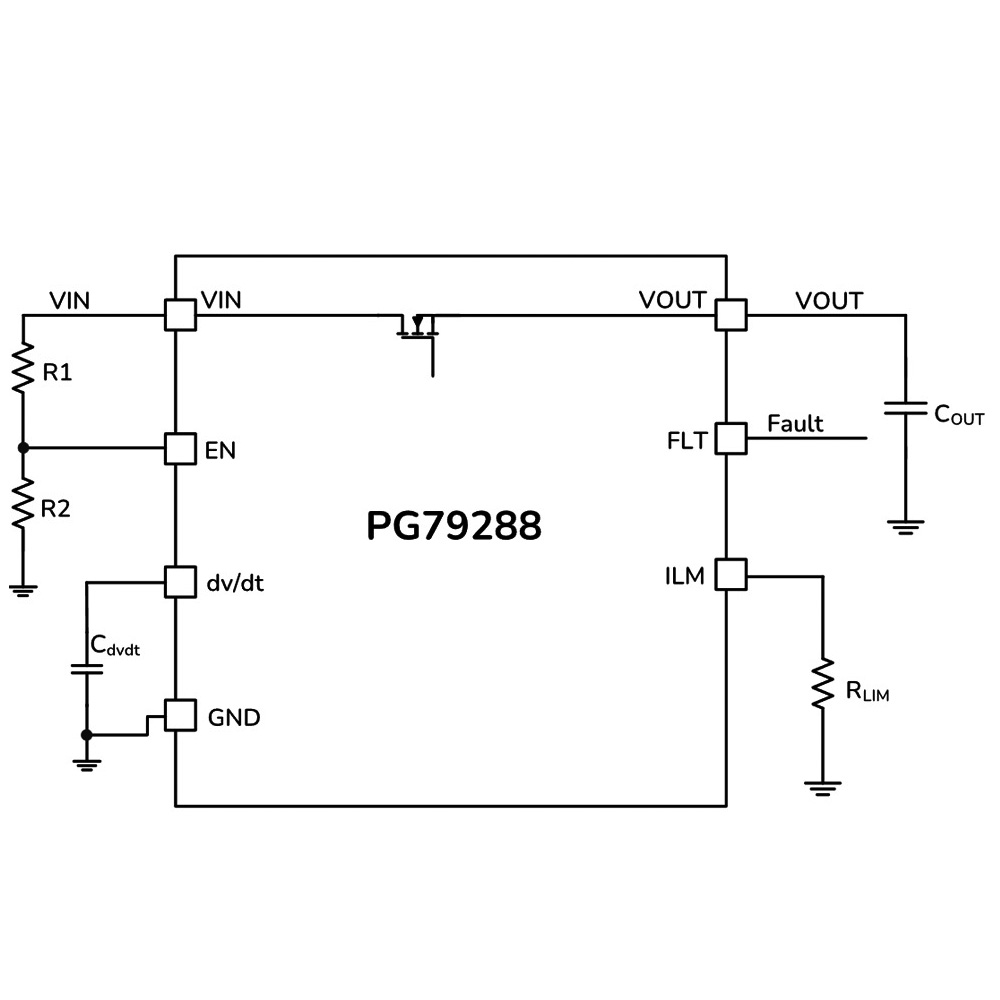

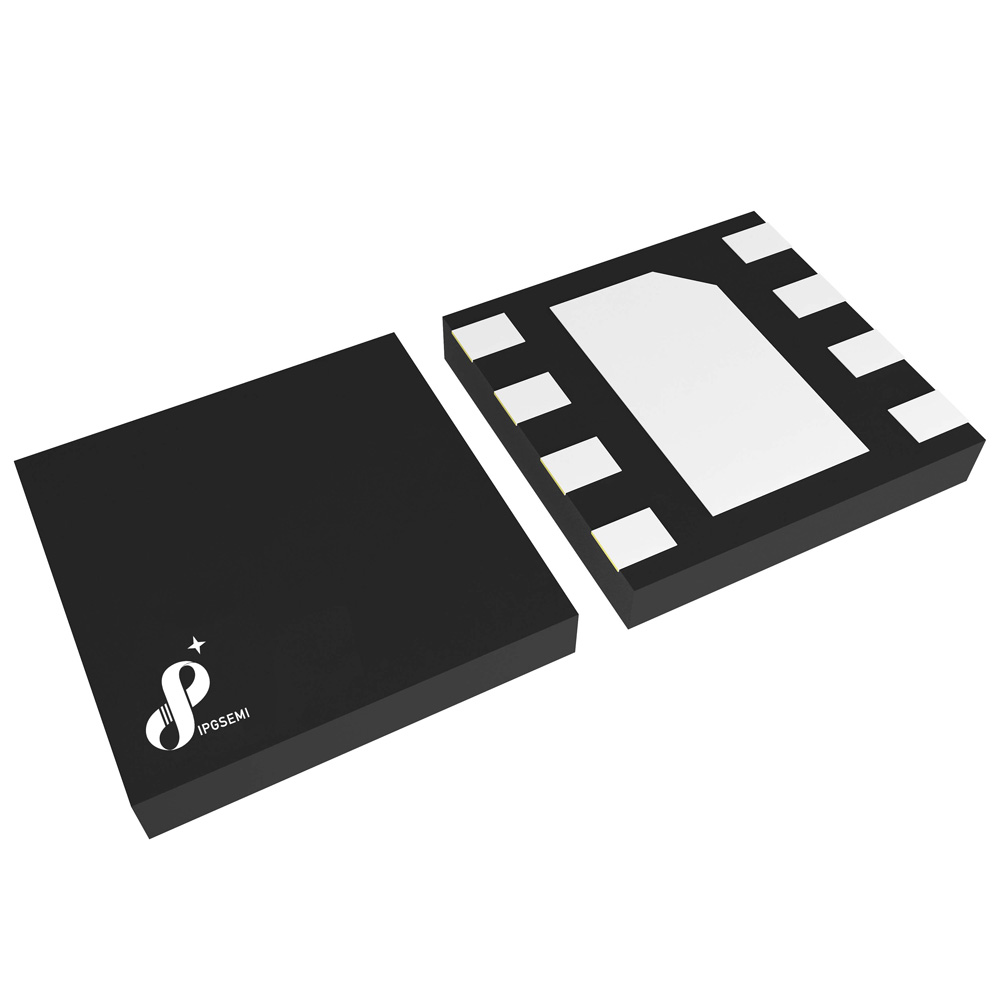

The device is available in WSON 8 pins, 2x2 mm package.
| P/N | Vin (V) Voltage Range(V) | Continuous Current (A) | UVLO (V) | OVP (V) | Ron typ (mΩ) | Iq typ (mA) | Fault indication | PMBUS | Soft-Start | Latch/Retry | Current Limit (A) | Package(s) | status |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG79288AR | 2.7 to 18 | 4 | 2.43 | 3.8 | 34 | 0.18 | Y | N | Y | Latch | 0.5 to 4 | WSON (8) (2x2 mm) | Active |
| PG79288BR | 2.7 to 18 | 4 | 2.43 | 3.8 | 34 | 0.18 | Y | N | Y | Latch | 0.5 to 4 | WSON (8) (2x2 mm) | Active |
| PG79288DR | 3 to 18 | 4 | 2.68 | 3.8 | 34 | 0.18 | Y | N | Y | Latch | 0.5 to 4 | WSON (8) (2x2 mm) | Active |
| 对比参数 |
PG79288
|
 3.3V / 单通道 / 电子保险丝
|
|---|---|---|
| Vin (V) Voltage Range(V) | 2.7 to 18 | |
| Continuous Current (A) | 4 | |
| UVLO (V) | 2.4 / 2.68 | |
| OVP (V) | 3.8 | |
| Ron typ (mΩ) | 34 | |
| Iq typ (mA) | 0.18 | |
| Fault indication | Y | |
| PMBUS | N | |
| Soft-Start | Y | |
| Latch/Retry | Latch / Retry | |
| Current Limit (A) | 0.5 to 4 | |
| Package |
WSON (8) (2x2 mm) |
|
| status | Active |
