智能功率级 / 6V / >80A
PG25A89
PG25A89
PG25A89
Active
· 2.5V to 7.5V Operating Input Range
· 5V VDD supply for internal logic
· Integrated power stage with High/Low-side MOSFETs and Drivers
· 100A Max, 45A TDC Output Current
· Operation Frequency up to 4MHz with 5V VIN.
· Compatible with 3.3V tri-state PWM input
· Internal Current Sense and Temperature Sense
· Built in Protection
- Vin and VDD UVLO
- High side Over Current Protection
- Cycle-by-cycle Over Current Limit
- Over Temperature Protection (OTP)
· Common Footprint Small Package Size 4x6mm
· RoHS Compliant and Green
· Server and Telecom Voltage Regulators
· Graphic Card Core Regulators
· Power Module

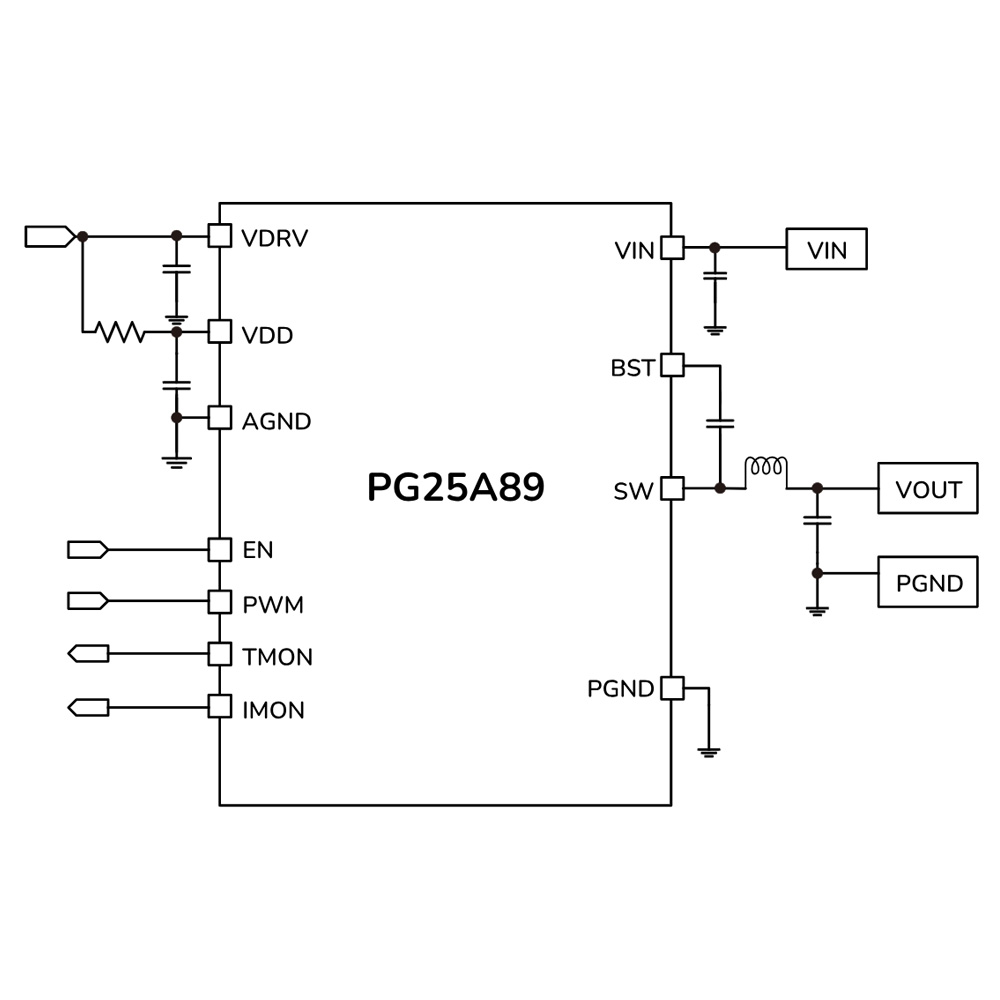

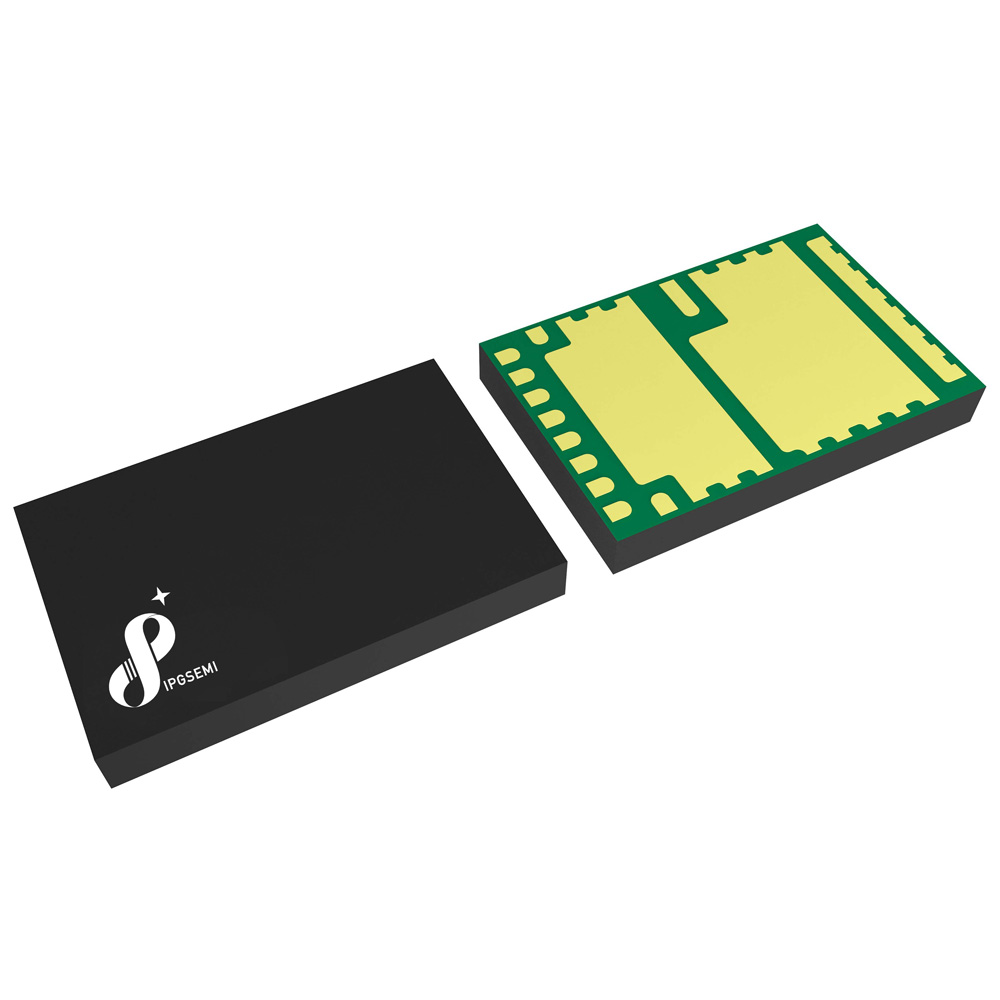

The PG25A89 is a compact TLGA device measuring 4mm x 6mm, designed for use in Server and Telecom applications that require high efficiency and small size.
It is a monolithic half-bridge that includes internal power MOSFETs and gate drivers, enabling it to achieve a continuous output current of 45A over a wide input supply range of 2.5V to 7.5V. The integration of driver and MOSFETs ensures high efficiency by reducing parasitic inductance and optimizing dead time.
This device can operate from 100kHz to 4MHz with 5V input voltage. It is compatible with tri-state output controllers and includes a general-purpose current sense and temperature sense, meeting industry specifications.
| P/N | Vin Max(V) | Iout ITDC(A) | Iout Max(A) | VDD typ(V) | Current Sense | Temperature Sense | Package(s) | status |
|---|---|---|---|---|---|---|---|---|
| PG25A89R | 7.5 | 45 | 100 | 5 | Y | Y | TLGA-34 (4mm x 6mm) | Active |
| 对比参数 |
PG25A89
|
 >80A / 6V / 智能功率级
|
|---|---|---|
| Vin Max(V) | 7.5 | |
| Iout ITDC(A) | 45 | |
| Iout Max(A) | 100 | |
| VDD typ(V) | 5 | |
| Current Sense | Y | |
| Temperature >Sense | Y | |
| Package(s) |
TLGA-34 (4mm x 6mm) |
|
| status | Active |
