栅极驱动器 / 半桥驱动器 / 80V

•      Half-bridge and full-bridge converters

•      High input voltage converters

•      Forward with active clamp converters

•      Synchronous buck converters

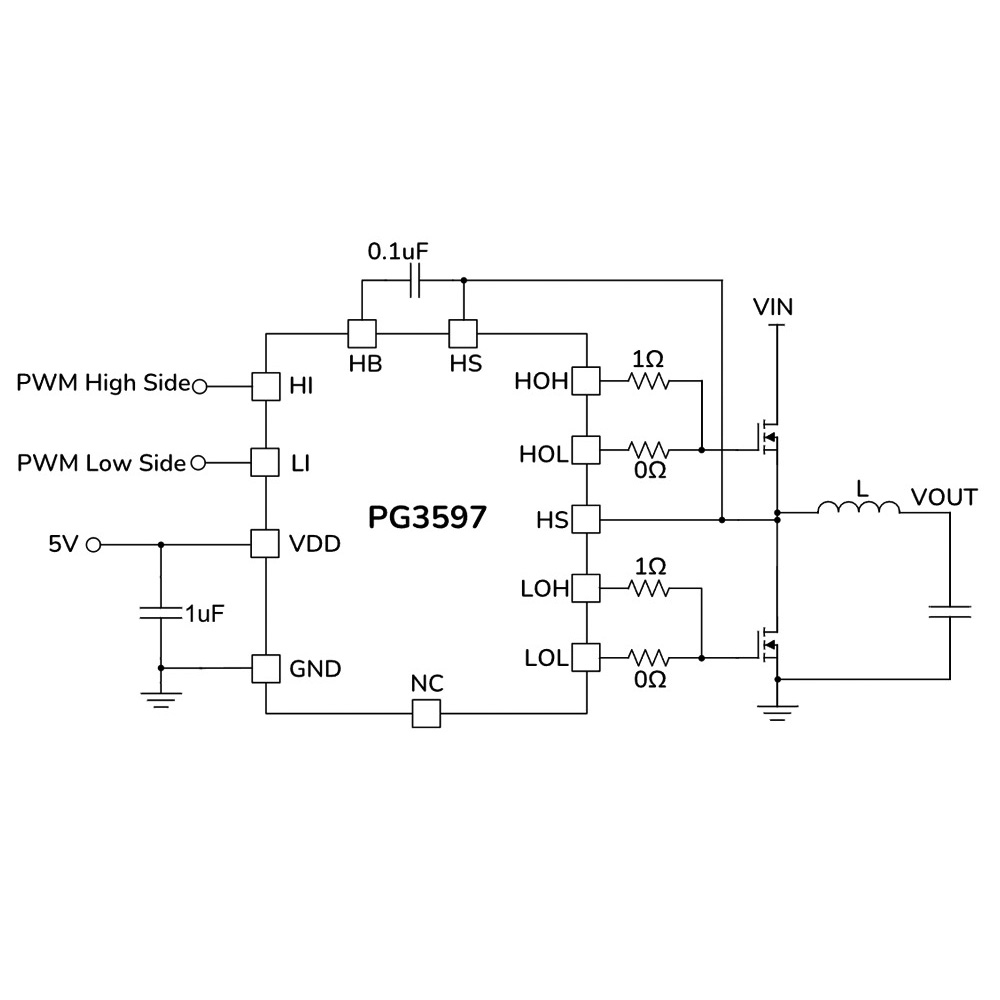

The PG3598/3597 devices are designed to drive both the high-side and low-side GaN FETs in a synchronous buck, boost, or half-bridge converters.

The device integrates an internal boot strap supply and UVLO function.

The device has independent inputs for the high-side and low-side outputs for maximum control flexibility. The input is CMOS compatible logic.

With separate outputs, the turn-on and turn-off strength can be adjusted independently. In addition, the strong sink capability of the device maintains the gate in a low state, preventing unintended turn-on during switching.

PG3598 is available in 12-pin WCSP package, and PG3597 is available in 14-pin QFN package.
